| Cutting Torch | Clamp | Mask & Brush | ||||
| Earth clamp with 3m cable | ||||||

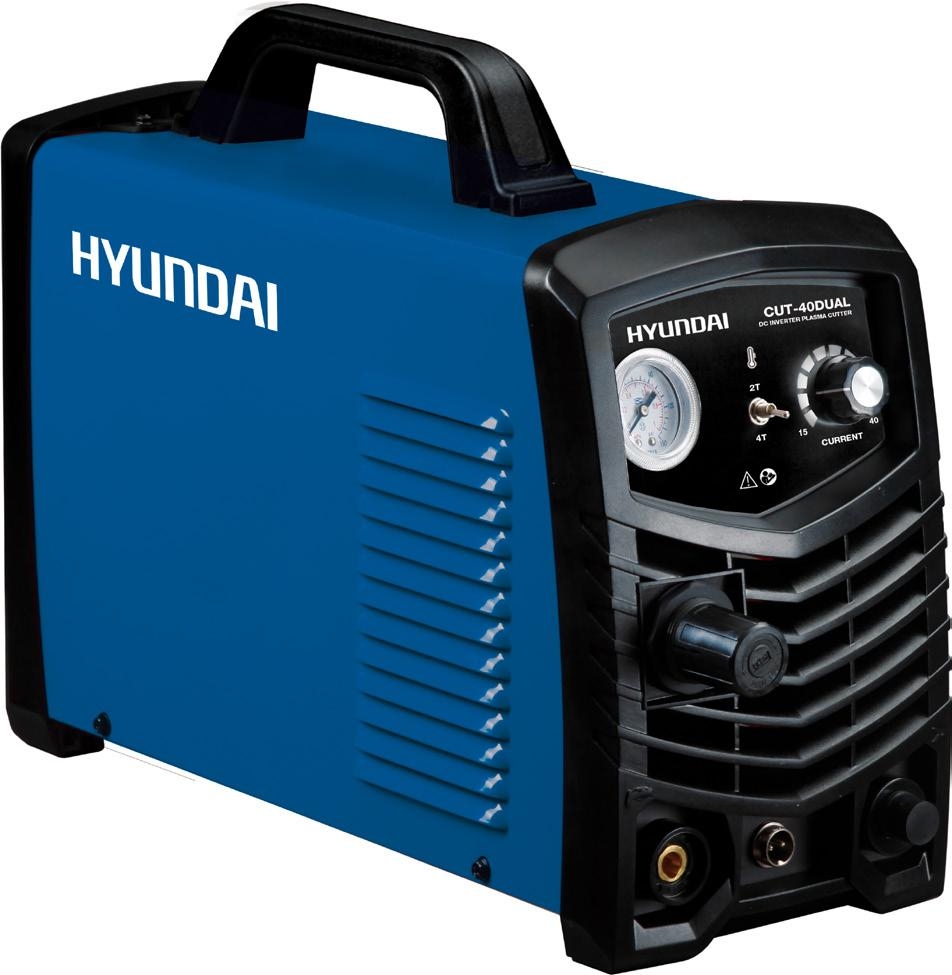

| Spec / Model | CUT-40DUAL | |||||
| 1P AC 110~120V / 220~240V, 50/60Hz | ||||||
| Rated Input Voltage (V) | ||||||
| 110~120V | 220~240V | |||||
| Rated Input Power (KVA) | 3.6 | 6.2 | ||||
| Rated Input Current (A) | 33 | 28 | ||||
| Rated Output Current & Voltage | 25A/90V | 40A/96V | ||||
| Output Current (A) | 15~25 | 15~40 | ||||
| No-load Voltage (V) | 360 | |||||
| Rated Duty Cycle (%) | 60 | |||||
| Efficiency (%) | 85 | |||||
| Power Factor (cosø) | 0.73 | |||||
| Protection Class | IP21S | |||||
| Insulation Class | F | |||||
| Measurement (mm) | 510*300*335 | |||||
| Net Weight (kg) | 13 | |||||
| Base unit includes | Cutting torch, Earth clamp with 3m cable, Mask & Brush | |||||
